OVERVIEW

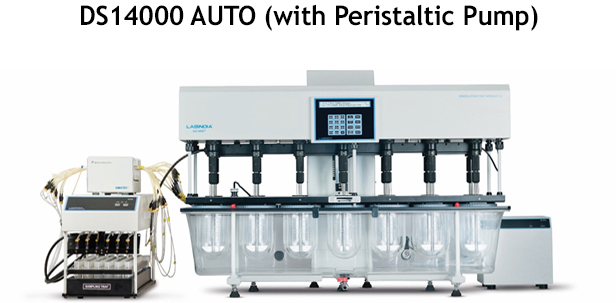

The Tablet Dissolution Tester DS 14000 with a peristaltic pump offers a high-throughput solution for dissolution testing, adhering to the latest USP, EP, BP, and IP standards. It features serialised paddles, baskets, and shafts for enhanced traceability.

STANDARD FEATURES
  1. Advanced, Micro -Controller based: User-friendly, complies with current USP, BP, IP & EP specifications.
  2. Splash waterproof keyboad: Alphanumeric polyester soft keys for keyboard.
  3. Moulded water bath with 12+2 (6+1 & 6+1 ) vessel configyration enables comparative studies.
  4. External vibration free Water Circulator: for uniform water circulation, with audible, low water level alarm, with indication on display for safety
  5. Mono Shaft design with automatic adjustment for 25 mm depth setting with easy changeover between Apparatus I & II eliminates routine height vlidation as per USP.
  6. Paddles, Basket and Vessels are laser marked with serial numbers for traceability
  7. Tablet dispenser - drops 12 dosage form at single instance.
  8. Low Esaporation Lids:
    ≫The conical shape shape low evaporation recovery lids reduces media loss during long run.
    ≫Integrated pre-centered lids; manual removal or positioning of lids. This ensures automatic vessel centering and precise positioning of paddle/basket with shaft without any special tool as per pharmacopeia reqirements.
SOFTWARE
  1. GLP Compliance.
  2. Audit Trail Software with 21 CFR Part 11 Compliance.
  3. Protects Editing, Acoids invalid entries.
  4. Ease in operation.
  5. Alarms and Indications.
  6. Wake-up Alarm.
REGULATORY COMPLIANCE
  1. DS 14000 meets all requirements relating to validation, qualification and calibration.
  2. Appropriate qualification documents (I.Q / O.Q / P.Q )can be supplied with the instrument.
INTELLIGENT SAMPLING SYSTEM
  1. Intelligent motorized sampling manifold complies with USP requirements Temperature monitoring system automatically records temperature of all the individual vessels at specified time points.
PERISTALTIC PUMP
  1. Bi-directional 12 channel - 24 channel -DS 14000 (12+2 bowl system) peristaltic pump with tubing from ISMATEC, Switzerland.
  2. Imported pump with click-n- go Cassette design along with volume calibration through software.
SAMPLE COLLECTION
  1. Over Head Design for electronic safety & fail safe operation.
  2. Sensor to locate proper position of tray with alarm facility for collection of sample.
  3. For DS 14000 (12+2 bowl system) : 12 x 6 x 2 sets of samples can be collected.
  4. Option of Test-tubes & 1.5ml / 2ml HPLC vials tray are available.
REPORTS

    Selectable Reports Format, complying with GLP requirements.
    RUN REPORT
    a) Report giving Run No., Set parameters and Actual parameters during the dissolution process.
    b) Diagnostic funtionality report to ensure proper working of the system.
    c) Printout of each vessel temperature and paddle/basket speed at every sampling interval for validation.
    d)Validation report for Temperature, RPM, Sample Volume and Replenishing Volume.







OVERVIEW

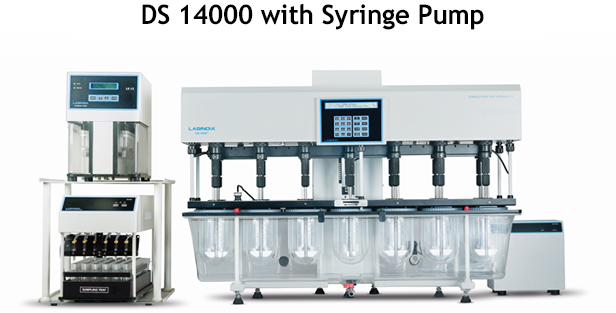

The Labindia Tablet Dissolution Tester DS 14000+ with Syringe Pump offers advanced capabilities for efficient and accurate offline dissolution sampling. This system features a 12-port multi-syringe pump with a proprietary, high-efficiency, maintenance-free stepper motor drive, enabling long-duration testing with consistent performance.

STANDARD FEATURES
  1. Advanced, Micro -Controller based: User-friendly, complies with current USP, BP, IP & EP specifications.
  2. Splash waterproof keyboad: Alphanumeric polyester soft keys for keyboard.
  3. Moulded water bath with 12+2 (6+1 & 6+1 ) vessel configyration enables comparative studies.
  4. External vibration free Water Circulator: for uniform water circulation, with audible, low water level alarm, with indication on display for safety
  5. Mono Shaft design with automatic adjustment for 25 mm depth setting with easy changeover between Apparatus I & II eliminates routine height vlidation as per USP.
  6. Paddles, Basket and Vessels are laser marked with serial numbers for traceability
  7. Tablet dispenser - drops 12 dosage form at single instance.
  8. Low Esaporation Lids:
    ≫The conical shape shape low evaporation recovery lids reduces media loss during long run.
    ≫Integrated pre-centered lids; manual removal or positioning of lids. This ensures automatic vessel centering and precise positioning of paddle/basket with shaft without any special tool as per pharmacopeia reqirements.
SOFTWARE
  1. GLP Compliance.
  2. Audit Trail Software with 21 CFR Part 11 Compliance.
  3. Protects Editing, Acoids invalid entries.
  4. Ease in operation.
  5. Alarms and Indications.
  6. Wake-up Alarm.
REGULATORY COMPLIANCE
  1. DS 14000 meets all requirements relating to validation, qualification and calibration.
  2. Appropriate qualification documents (I.Q / O.Q / P.Q )can be supplied with the instrument.
INTELLIGENT SAMPLING SYSTEM
  1. Automated sampling as per USP Specifications. Sampling tubes are lowered in the media only at the time of sampling and withdrawn immediately after sampling, thus no par t of the assembly contributes motion, agitation or vibration (500, 750, 900 & 1000 ml).
  2. Sampling tubes are accurately moved to the USP sampling position i.e. a zone mid way between the sur face of media and the top of paddle/basket parameters, not less than 1 cm from the vessels wall as selected in the method.
  3. 12 bowls temperature monitoring system automatically measures and records the temperature of individual vessel at specified sample points.
SAMPLE COLLECTION
  1. 12 X 6 X 2 sets of samples can be collected. For more sampling interval, 24 X 6 collection trays are available.
  2. Option of 1.5ml & 2ml HPLC vials is available.
  3. Over Head Design for electronic safety and fail safe operation.
  4. Sensor to locate proper position of tray with alar m facility for collection of sample.
  5. Wide mouth vial to minimise SLS spillover problem due to foaming Characteristics.
SYRINGE PUMP FOR AUTOMATIC DISSOLUTION TEST SAMPLE COLLECTION
  1. Multi-Syringe Pump system designed for automatic Sample Collection from Dissolution Bowls of Labindia Dissolution Test Apparatus Ds14000+.
  2. Perform Rinsing the sample tubing path, Replenishing the blank media volume to bowls and Sample Dilution tasks (Optional for future development).
  3. Controlled through Labindia dissolution Instr ument Controller with Operation Status Indications on the front panel for user information.
  4. Inert fluid path consisting of Teflon carrier tubing, Gastight Glass Syringes with Teflon Plunger and PEEK body Valves.
  5. Proprietary high-efficiency and maintenance-free Stepper motor drive system.
  6. Long-life 4 port Rotary shear valves with SS Body.
  7. Volume accuracy better than 1%.
REPORTS

    Selectable Reports Format, complying with GLP requirements.
    RUN REPORT
    a) Report giving Run No., Set parameters and Actual parameters during the dissolution process.
    b) Diagnostic funtionality report to ensure proper working of the system.
    c) Printout of each vessel temperature and paddle/basket speed at every sampling interval for validation.
    d)Validation report for Temperature, RPM, Sample Volume and Replenishing Volume.






OVERVIEW

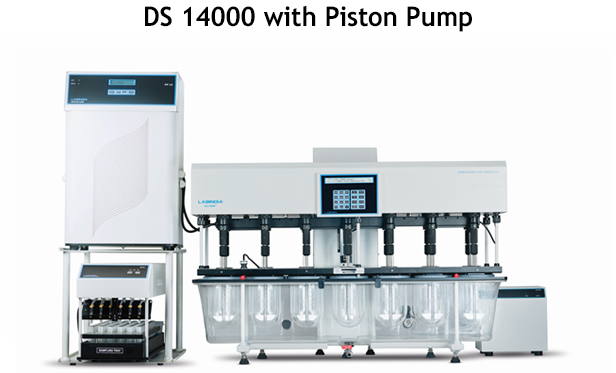

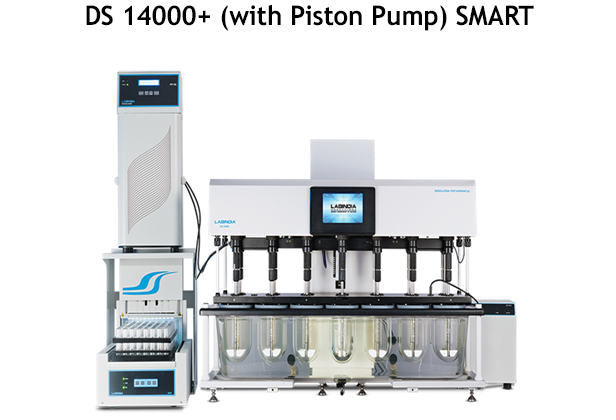

The Tablet Dissolution Tester DS 14000+ with Piston Pump is designed for high-throughput, accurate dissolution testing. Featuring automated sampling that meets pharmacopeia standards, it ensures precise sample collection with minimal motion, agitation, or vibration during the process.

STANDARD FEATURES
  1. Advanced, Micro -Controller based: User-friendly, complies with current USP, BP, IP & EP specifications. It fulfills all requirements relating to ASTM & FDA Mechanical Calibration.
  2. Splash waterproof keyboad: Alphanumeric polyester soft keys for keyboard.
  3. Moulded water bath with 12+2 (6+1 & 6+1 ) vessel configyration enables comparative studies.
  4. External vibration free Water Circulator: for uniform water circulation, with audible, low water level alarm, with indication on display for safety
  5. Mono Shaft design with automatic adjustment for 25 mm depth setting with easy changeover between Apparatus I & II eliminates routine height vlidation as per USP.
  6. Paddles, Basket and Vessels are laser marked with serial numbers for traceability
  7. Tablet dispenser - drops 12 dosage form at single instance.
  8. Low Esaporation Lids:
    ≫The conical shape shape low evaporation recovery lids reduces media loss during long run.
    ≫Integrated pre-centered lids; manual removal or positioning of lids. This ensures automatic vessel centering and precise positioning of paddle/basket with shaft without any special tool as per pharmacopeia reqirements.
SOFTWARE
  1. GLP Compliance..
  2. Audit Trail Software with 21 CFR Part 11 Compliance.
  3. Protects Editing, Acoids invalid entries.
  4. Ease in operation.
  5. Alarms and Indications.
  6. Wake-up Alarm.
REGULATORY COMPLIANCE
  1. DS 14000 meets all requirements relating to validation, qualification and calibration.
  2. Appropriate qualification documents (I.Q / O.Q / P.Q )can be supplied with the instrument.
INTELLIGENT SAMPLING SYSTEM
  1. Automated sampling as per USP Specifications. Sampling tubes are lowered in the media only at the time of sampling and withdrawn immediately after sampling, thus no par t of the assembly contributes motion, agitation or vibration (500, 750, 900 & 1000 ml).
  2. Sampling tubes are accurately moved to the USP sampling position i.e. a zone mid way between the sur face of media and the top of paddle/basket parameters, not less than 1 cm from the vessels wall as selected in the method.
  3. 12 bowls temperature monitoring system automatically measures and records the temperature of individual vessel at specified sample points.
PUMP SYSNTEM - PP 12
  1. Piston Pump PP-12 is ideal for sample withdrawal from 12 channels.
  2. The inert ceramic rotor overcomes all absorption issues.
  3. Accuracy better than ±1% (@10ml).
  4. Rinse function for reducing carryover issues.
  5. Surfactant Media Compatibility.
  6. Option of sample dilution available ( not recommended before final filtration).
SAMPLE COLLECTION
  1. 12 X 6 X 2 sets of samples can be collected. For more sampling interval, 24 X 6 collection trays are available.
  2. Over Head Design for electronic safety and fail safe operation.
  3. Sensor to locate proper position of tray with alar m facility for collection of sample.
  4. Wide mouth vial to minimise SLS spillover problem due to foaming Characteristics.
ADDITIONAL FEATURES
  1. Facility to RINSE the entire sampling path in between sampling time points to reduce contamination & carryover.
  2. Specially developed cleaning system to the entire sampling path after eaxh run.
  3. Facilities to perform the dissoulution test using two buffers (Buffer chaning ) to cater the application of enteric coating tablets.
  4. Recovery Test faility to study 100% Drug Dissolution.
  5. Split & on-time interval.
REPORTS

    Selectable Reports Format, complying with GLP requirements.
    RUN REPORT
    a) Report giving Run No., Set parameters and Actual parameters during the dissolution process.
    b) Diagnostic funtionality report to ensure proper working of the system.
    c) Printout of each vessel temperature and paddle/basket speed at every sampling interval for validation.
    d)Validation report for Temperature, RPM, Sample Volume and Replenishing Volume.






OVERVIEW

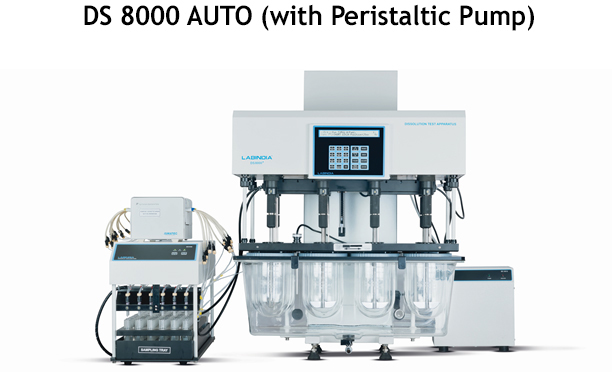

Labindia Analytical’s DS 8000 Dissolution Apparatus with a peristaltic pump ensures consistent fluid delivery for accurate dissolution testing. Ideal for tablets and capsules, it offers programmable settings for a wide range of test conditions. This versatile apparatus provides high flexibility, making it suitable for both routine quality control and advanced research applications.

STANDARD FEATURES
  1. Advanced, Micro -Controller based: User-friendly, complies with current USP, BP, IP & EP specifications.
  2. Splash waterproof keyboad: Alphanumeric polyester soft keys for keyboard.
  3. Moulded water bath with 6+2 (3+1 & 3+1 ) vessel configyration enables comparative studies.
  4. External vibration free Water Circulator: for uniform water circulation, with audible, low water level alarm, with indication on display for safety
  5. Mono Shaft design with automatic adjustment for 25 mm depth setting with easy changeover between Apparatus I & II eliminates routine height vlidation as per USP.
  6. Paddles, Basket and Vessels are laser marked with serial numbers for traceability
  7. Tablet dispenser - drops 12 dosage form at single instance.
  8. Low Evaporation Lids:
    ≫The conical shape shape low evaporation recovery lids reduces media loss during long run.
    ≫Integrated pre-centered lids; manual removal or positioning of lids. This ensures automatic vessel centering and precise positioning of paddle/basket with shaft without any special tool as per pharmacopeia reqirements.
SOFTWARE
  1. GLP Compliance.
  2. Audit Trail Software with 21 CFR Part 11 Compliance.
  3. Protects Editing, Acoids invalid entries.
  4. Ease in operation.
  5. Alarms and Indications.
  6. Wake-up Alarm.
REGULATORY COMPLIANCE
  1. DS 8000 meets all requirements relating to validation, qualification and calibration.
  2. Appropriate qualification documents (I.Q / O.Q / P.Q )can be supplied with the instrument.
INTELLIGENT SAMPLING SYSTEM
  1. Intelligent motorized sampling manifold complies with USP requirements Temperature monitoring system automatically records temperature of all the individual vessels at specified time points.
PESRISTALTIC PUMP
  1. Bi-directional 12 channel -DS 8000 (6+2 bowl system) peristaltic pump with tubing from ISMATEC, Switzerland.
  2. Imported pump with click-n-go Cassette design along with volume calibration through software.
SAMPLE COLLECTION
  1. Over Head Design for electronic safety & fail safe operation.
  2. Sensor to locate proper position of tray with alarm facility for collection of sample.
  3. For DS 8000(6+2 bowl system) : 10x6 or 16x6 sets of samples can be collected. For more sampling interval, 24x6 collection trays are available in the system.
  4. Option of Test-tubes & 1.5ml / 2ml HPLC vials tray are available.
REPORTS

    Selectable Reports Format, complying with GLP requirements.
    RUN REPORT
    a) Report giving Run No., Set parameters and Actual parameters during the dissolution process.
    b) Diagnostic funtionality report to ensure proper working of the system.
    c) Printout of each vessel temperature and paddle/basket speed at every sampling interval for validation.
    d)Validation report for Temperature, RPM, Sample Volume and Replenishing Volume.








OVERVIEW

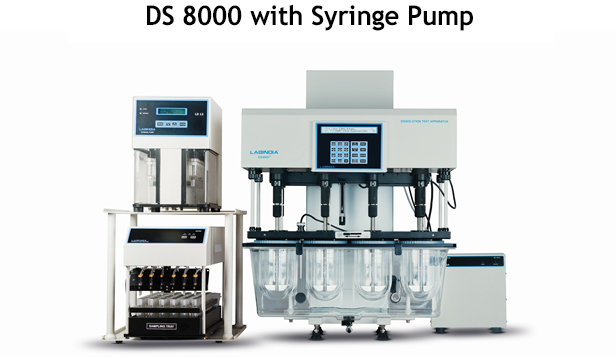

The Labindia Tablet Dissolution Tester DS 8000+ with Syringe Pump is an ideal semi-automated system for routine testing. Its user-friendly software, in dialogue mode, ensures ease of operation with built-in protection against invalid entries.

STANDARD FEATURES
  1. Advanced, Micro -Controller based: User-friendly, complies with current USP, BP, IP & EP specifications.
  2. Splash waterproof keyboad: Alphanumeric polyester soft keys for keyboard.
  3. Moulded water bath with 6+2 (3+1 & 3+1 ) vessel configyration enables comparative studies.
  4. External vibration free Water Circulator: for uniform water circulation, with audible, low water level alarm, with indication on display for safety
  5. Mono Shaft design with automatic adjustment for 25 mm depth setting with easy changeover between Apparatus I & II eliminates routine height vlidation as per USP.
  6. Paddles, Baskets and Vessels are laser marked with serial numbers for traceability.
  7. Tablet dispenser - drops 12 dosage form at single instance.
  8. Low Evaporation Lids:
    ≫The conical shape shape low evaporation recovery lids reduces media loss during long run.
    ≫Integrated pre-centered lids; manual removal or positioning of lids. This ensures automatic vessel centering and precise positioning of paddle/basket with shaft without any special tool as per pharmacopeia reqirements.
SOFTWARE
  1. GLP Compliance.
  2. Audit Trail Software with 21 CFR Part 11 Compliance.
  3. Protects Editing, Acoids invalid entries.
  4. Ease in operation.
  5. Alarms and Indications.
  6. Wake-up Alarm.
REGULATORY COMPLIANCE
  1. DS 8000 meets all requirements relating to validation, qualification and calibration.
  2. Appropriate qualification documents (I.Q / O.Q / P.Q )can be supplied with the instrument.
SYRINGE PUMP FOR AUTOMATIC DISSOLUTIN TEST SAMPLE COLLECTION
  1. Multi-Syringe Pump system designed for automatic Sample Collection from Dissolution Bowls of Labindia Dissolution Test + Apparatus DS8000.
  2. Perform Rinsing the sample tubing path, Replenishing the blank media volume to bowls and Sample Dilution tasks (Optional for future development).
  3. Controlled through Labindia dissolution Instrument Controller with Operation Status Indications on the front panel for user information.
  4. Inert fluid path consisting of Teflon carrier tubing, Gastight Glass Syringes with Teflon Plunger and PEEK body Valves.
  5. Proprietary high-efficiency and maintenance-free Stepper motor drive system. Built in Clean function executed at the end of each test to ensure the entire liquid path is clean for the next r un avoiding cross contamination and carryover effects.
  6. Validation protocol to validate the Sample, Replenishing, Rinse Volume.
  7. All syringes & valves operated synchronously for parallel operation.
  8. Zero setting for each syringe.
  9. Long-life 4 port Rotary shear valves with SS Body.
  10. Volume accuracy better than 1%.
INTELLIGENT SAMPLING SYSTEM
  1. Automated sampling as per USP Specifications. Sampling tubes are lowered in the media only at the time of sampling and withdrawn immediately after sampling, thus no part of the assembly contributes motion, agitation or vibration.
  2. Sampling tubes are accurately moved to the USP sampling position i.e. a zone mid way between the surface of media and the top of paddle/basket parameters, not less than 1 cm from the vessels wall as selected in the method.
  3. 6 vessels temperature monitoring system automatically measures & records the temperature of individual vessel at specified sample points.
C 3000X6 SYRINGE PUMP
  1. 4-port Multi-Syringe Pump System performs rinsing the sample tubing path, replenishing the blank media volume to vessels & sample dilution tasks.
  2. Volume accuracy better than 1%.
  3. Proprietary high efficiency & maintenance free stepper motor drive system.
  4. Cross contamination & carryover effects are avoided by the Built in Clean function which ensures entire liquid path is clean for the next run.
SAMPLE COLLECTION
  1. 10 X 6 or 16 X 6 sets of samples can be collected. For more sampling interval, 24 X 6 collection trays are available.
  2. Option of 1.5ml & 2ml HPLC vial tray is available.
  3. Over Head Design for electronic safety and fail safe operation.
  4. Sensor to locate proper position of tray with alarm facility for collection of sample.
  5. Wide mouth vial to minimise SLS spillover problem due to foaming characteristics.
  6. Easy positioning with respect to vials or test tube tray for easy changeover.
REPORTS

    Selectable Reports Format, complying with GLP requirements.
    RUN REPORT
    a) Report giving Run No., Set parameters and Actual parameters during the dissolution process.
    b) Diagnostic funtionality report to ensure proper working of the system.
    c) Printout of each vessel temperature and paddle/basket speed at every sampling interval for validation.
    d)Validation report for Temperature, RPM, Sample Volume and Replenishing Volume.






OVERVIEW
The Labindia Tablet Dissolution Tester DS 8000+ with Piston Pump and Automatic Filter Changer is the ideal solution for streamlined dissolution testing. It offers efficient sample collection, filtration, and accurate withdrawal, easing the complex process of pharmaceutical testing. The system integrates a high-pressure piston pump with an automatic filter changer, improving the consistency and speed of analysis.

STANDARD FEATURES
  1. Advanced, Micro -Controller based: User-friendly, complies with current USP, BP, IP & EP specifications.
  2. Splash waterproof keyboad: Alphanumeric polyester soft keys for keyboard.
  3. Moulded water bath with 6+2 (3+1 & 3+1 ) vessel configyration enables comparative studies.
  4. External vibration free Water Circulator: for uniform water circulation, with audible, low water level alarm, with indication on display for safety
  5. Mono Shaft design with automatic adjustment for 25 mm depth setting with easy changeover between Apparatus I & II eliminates routine height vlidation as per USP.
  6. Paddles, Basket and Vessels are laser marked with serial numbers for traceability
  7. Tablet dispenser - drops 12 dosage form at single instance.
  8. Low Evaporation Lids:
    ≫The conical shape shape low evaporation recovery lids reduces media loss during long run.
    ≫Integrated pre-centered lids; manual removal or positioning of lids. This ensures automatic vessel centering and precise positioning of paddle/basket with shaft without any special tool as per pharmacopeia reqirements.
SOFTWARE
  1. GLP Compliance.
  2. Audit Trail Software with 21 CFR Part 11 Compliance.
  3. Protects Editing, Acoids invalid entries.
  4. Ease in operation.
  5. Alarms and Indications.
  6. Wake-up Alarm.
REGULATORY COMPLIANCE
  1. DS 8000 meets all requirements relating to validation, qualification and calibration.
  2. Appropriate qualification documents (I.Q / O.Q / P.Q )can be supplied with the instrument.
INTELLIGENT SAMPLING SYSTEM
  1. Automated sampling as per USP Specifications. Sampling tubes are lowered in the media only at the time of sampling and withdrawn immediately after sampling, thus no part of the assembly contributes motion, agitation or vibration.
  2. Sampling tubes are accurately moved to the USP sampling position i.e. a zone mid way between the surface of media and the top of paddle/basket parameters, not less than 1 cm from the vessels wall as selected in the method.
  3. 6 vessels temperature monitoring system automatically measures & records the temperature of individual vessel at specified sample points.
PUMP SYSTEM - PP 08
  1. Piston Pmp PP-08 is ideal for sample withdrawal from 6, 7/8 channels.
  2. The Piston Pump - PP 08 with inert ceramic rotor overcomes all absorption issues.
  3. Accuracy better than ±1% (@10ml)
  4. Rinse function for reducing carryover issues.
  5. Surfactant Media Compatibility.
SAMPLE COLLECTION
  1. 10 X 6 or 16 X 6 sets of samples can be collected. For more sampling interval, 24 X 6 collection trays are available.
  2. Option of 1.5ml & 2ml HPLC vial tray is available.
  3. Over Head Design for electronic safety and fail safe operation.
  4. Sensor to locate proper position of tray with alarm facility for collection of sample.
  5. Wide mouth vial to minimise SLS spillover problem due to foaming characteristics.
  6. Easy positioning with respect to vials or test tube tray for easy changeover.
ADDITIONAL FEATURES
  1. Built-in Validation software.
  2. Facility to RINSE the entire sampling path in between sampling time points to reduce contamination & carryover.
  3. Specially developed cleaning system to the entire sampling path after eaxh run.
  4. Facilities to perform the dissoulution test using two buffers (Buffer chaning ) to cater the application of enteric coating tablets.
  5. Recovery Test faility to study 100% Drug Dissolution.
  6. Split & on-time interval.
REPORTS

    Selectable Reports Format, complying with GLP requirements.
    RUN REPORT
    a) Report giving Run No., Set parameters and Actual parameters during the dissolution process.
    b) Diagnostic funtionality report to ensure proper working of the system.
    c) Printout of each vessel temperature and paddle/basket speed at every sampling interval for validation.
    d)Validation report for Temperature, RPM, Sample Volume and Replenishing Volume.

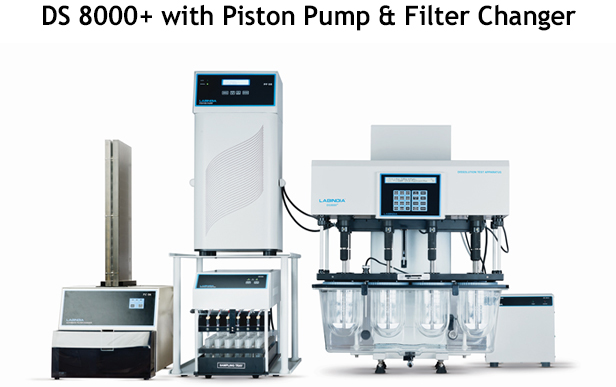

OVERVIEW
The Labindia Tablet Dissolution Tester DS 8000+ with Piston Pump and Automatic Filter Changer is the ideal solution for streamlined dissolution testing. It offers efficient sample collection, filtration, and accurate withdrawal, easing the complex process of pharmaceutical testing. The system integrates a high-pressure piston pump with an automatic filter changer, improving the consistency and speed of analysis.

STANDARD FEATURES
  1. Advanced, Micro -Controller based: User-friendly, complies with current USP, BP, IP & EP specifications.
  2. Splash waterproof keyboad: Alphanumeric polyester soft keys for keyboard.
  3. Moulded water bath with 6+2 (3+1 & 3+1 ) vessel configyration enables comparative studies.
  4. External vibration free Water Circulator: for uniform water circulation, with audible, low water level alarm, with indication on display for safety
  5. Mono Shaft design with automatic adjustment for 25 mm depth setting with easy changeover between Apparatus I & II eliminates routine height vlidation as per USP.
  6. Paddles, Basket and Vessels are laser marked with serial numbers for traceability
  7. Tablet dispenser - drops 12 dosage form at single instance.
  8. Low Evaporation Lids:
    ≫The conical shape shape low evaporation recovery lids reduces media loss during long run.
    ≫Integrated pre-centered lids; manual removal or positioning of lids. This ensures automatic vessel centering and precise positioning of paddle/basket with shaft without any special tool as per pharmacopeia reqirements.
SOFTWARE
  1. GLP Compliance.
  2. Audit Trail Software with 21 CFR Part 11 Compliance.
  3. Protects Editing, Acoids invalid entries.
  4. Ease in operation.
  5. Alarms and Indications.
  6. Wake-up Alarm.
REGULATORY COMPLIANCE
  1. DS 8000 meets all requirements relating to validation, qualification and calibration.
  2. Appropriate qualification documents (I.Q / O.Q / P.Q )can be supplied with the instrument.
PISTON PUMP - PP08 - ACCESSORY FOR AUTOMATIC SAMPLE WITHDRAWAL - HIGH PRESSURE PUMP SYSTEM FEATURES
  1. Piston Pump - PP08 is Microprocessor controlled and is ideal for sample withdrawal from 6, 7, 8 channels.
  2. The Piston Pump - PP08 with iner t ceramic rotor overcomes all absorption issues.
  3. High flow rates of 25 ml / min can be achieved with accuracy better than ±5%.
  4. Rinse function for reducing car ryover issues.
  5. Surfactant Media Compatibility.
FILTER CHANGER-FC 08 - OPTIONALACCESSORY FOR INLINE FILTERING OF SAMPLE BEFORE COLLECTION THROUGH SYRINGE FILTERS FEATURES
  1. Automatic Filter changer FC 08 is Microprocessor controlled and designed to filter 6, 7, or 8 sampling lines simultaneously.
  2. Accessory for Inline Filtering of Sample before collection through Syringe Filters.
  3. FC 08 is used in conjunction with high pressure LABINDIAPiston Pump-PP08 with filtration down to 0.22 & 0.45 μm.
  4. High Storage capacity – up to 96 filters at a time gives uninterrupted filtered sample collection for 16 Sampling Points.
  5. Individual channel Sensors to ensure filters are in place.
  6. In case the syringe filter is missing, automatic switch-over of valves to collect unfiltered sample, with an indication in the printout.
REPORTS

    Selectable Reports Format, complying with GLP requirements.
    RUN REPORT
    a) Report giving Run No., Set parameters and Actual parameters during the dissolution process.
    b) Diagnostic funtionality report to ensure proper working of the system.
    c) Printout of each vessel temperature and paddle/basket speed at every sampling interval for validation.
    d)Validation report for Temperature, RPM, Sample Volume and Replenishing Volume.






OVERVIEW
The Tablet Dissolution Tester DS 14000+ with Piston Pump is designed for high-throughput, accurate dissolution testing. Featuring automated sampling that meets pharmacopeia standards, it ensures precise sample collection with minimal motion, agitation, or vibration during the process.

STANDARD FEATURES
  1. Advanced, Micro -Controller based(ARM Core): User-friendly, complies with current USP, BP, IP & EP specifications. It fulfills all requirements relating to ASTM & FDA Mechanical Calibration.
  2. Moulded water bath with 12+2 (6+1 & 6+1 ) vessel configyration enables comparative studies.
  3. Mono shaft design with easy changeover between Apparatus I & II eliminates routine height validation as per USP.
  4. Automatic stirrer 25 mm depth positioning (as per USP requirement).
  5. paddles, Baskets and Vessels are laser marked with seial numbers for traceability.
  6. Automated Tablet dispenser - drops 12 dosage from at single instance.
  7. Low Esaporation Lids:
    ≫The conical shape shape low evaporation recovery lids reduces media loss during long run.
    ≫Integrated pre-centered lids; manual removal or positioning of lids. This ensures automatic vessel centering and precise positioning of paddle/basket with shaft without any special tool as per pharmacopeia reqirements.
SOFTWARE
  1. GLP Compliance.
  2. Audit Trail Software with 21 CFR Part 11 Compliance.
  3. Protects Editing, Acoids invalid entries.
  4. Ease in operation.
  5. Alarms and Indications.
  6. Wake-up Alarm.
REGULATORY COMPLIANCE
  1. DS 14000 meets all requirements relating to validation, qualification and calibration.
  2. Appropriate qualification documents (I.Q / O.Q / P.Q )can be supplied with the instrument.
PUMP SYSNTEM - PP 12
  1. Piston Pump PP-12 is ideal for sample withdrawal from 12 channels.
  2. The Piston Pump - PP12 with inert ceramic rotor overcomes all absorption issues.
  3. Accuracy better than ±1% (@10ml).
  4. Rinse function for reducing carryover issues.
  5. Surfactant Media Compatibility.
  6. Option of sample dilution available ( not recommended before final filtration).
SAMPLE COLLECTION
  1. 12 X 8 X 2 sets of samples can be collected. For more sampling interval, 24 X 8 collection trays are available.
  2. Optional of 1.5mL & 2mL HPLC vial tray is available.
  3. Sensor to locate proper position of tray with alarm facility for collection of sample.
  4. Wide mouth vial to minimise SLS spillover problem due to foaming Characteristics.
  5. Easy postitoning with ewspect to vials or test tube tray for easy changeover.
INTELLIGENT SAMPLING SYSTEM
  1. Automated sampling as per USP Specifications. Sampling tubes are lowered in the media only at the time of sampling and withdrawn immediately after sampling, thus no part of the assembly contributes motion, agitation or vibration.
  2. Sampling tubes are accurately moved to the USP sampling position i.e. a zone mid way between the surface of media and the top of paddle/basket parameters, not less than 1 cm from the vessels wall as selected in the method.
  3. 12 vessels temperature monitoring system automatically measures & records the temperature of individual vessel at specified sample points.
  4. Inter PTFE Fluoropolymer Carrier Tubing
ADDITIONAL FEATURES
  1. Built-in Validation software.
  2. Facility to RINSE the entire sampling path in between sampling time points to reduce contamination & carryover.
  3. Specially developed cleaning system to the entire sampling path after eaxh run.
  4. Facilities to perform the dissoulution test using two buffers (Buffer chaning ) to cater the application of enteric coating tablets.
  5. Recovery Test faility to study 100% Drug Dissolution.
  6. Split & on-time interval.
  7. Disposable syringe & Filter attachment for manual sample collection.
OPTIONAL ACCESSORIES
  1. Sinkers, USP 5 (Transdermal Paddle Over disk), USP 6 (Tramsdermal Rotating cylinder), Intrinsic dissolution apparatus ( rotating and stationary), Enhancer cell, Felodipine Basket, Sampling cannula, Teflon coated Paddles, Dold pated Baskets.
  2. Dissolution test vessel : Peak Vessel 1000mL, 100mL, 150mL, 250mL & 500 mL with mini paddles.
  3. Dissolution Qualification tool kit for calibration according to FDA.
REPORTS

    Reports Format, colplying Run, Date and Time with GLP requirements.
    RUN REPORT
    a) Report giving Run No., Set parameters and Actual parameters during the dissolution process.
    b) Printout of each vessel temperature and paddle/basket speed at every sampling interval for validation.
    c) Validation report for Temperature, RPM, Sample Volume and Replenishing Volume.

21 CFR PART 11 COMPLIANCE
  1. Audit Trail for all activities with search facility, report generation and printing.
  2. 200 & More User ID’s with alphanumeric entries of user name, password and role based privileges selection.
  3. Multi-level roles with password protection. Expiry & complexity.
  4. User authentication is per formed for each and every operation done by user.
  5. PDF report dile can created through print.
  6. USB Printing eliminates the need of serial port to connect with instrument. The user can take printout on any local or network printer as well.
  7. Electronic signature functionality.
  8. Data Backup & Restore facility available.
  9. LAN (Ethernet) connectivity for Data back up on Network shared folder.

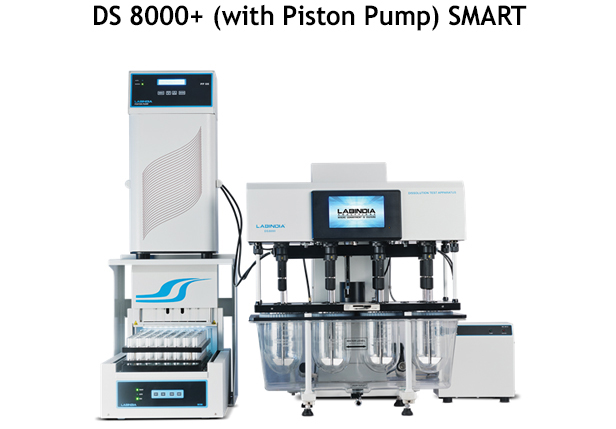

OVERVIEW
The Labindia Tablet Dissolution Tester DS 8000 SMART with Piston Pump is an advanced semi-automatic solution for precise and efficient drug dissolution testing. This system features a 6-vessel temperature monitoring system that automatically measures and records the temperature at individual vessels during specified sample points, ensuring consistent testing conditions.

STANDARD FEATURES
  1. Advanced, Micro -Controller based(ARM Core): User-friendly, complies with current USP, BP, IP & EP specifications. It fulfills all requirements relating to ASTM & FDA Mechanical Calibration.
  2. Moulded water bath with 6 + 2 (3+1 & 3+1 ) vessel configyration enables comparative studies.
  3. Mono shaft design with easy changeover between Apparatus I & II eliminates routine height validation as per USP.
  4. Automatic stirrer 25 mm depth positioning (as per USP requirement).
  5. paddles, Baskets and Vessels are laser marked with seial numbers for traceability.
  6. Automated Tablet dispenser - drops 12 dosage from at single instance.
  7. Low Esaporation Lids:
    ≫The conical shape shape low evaporation recovery lids reduces media loss during long run.
    ≫Integrated pre-centered lids; manual removal or positioning of lids. This ensures automatic vessel centering and precise positioning of paddle/basket with shaft without any special tool as per pharmacopeia reqirements.
SOFTWARE
  1. GLP Compliance.
  2. Audit Trail Software with 21 CFR Part 11 Compliance.
  3. Protects Editing, Acoids invalid entries.
  4. Ease in operation.
  5. Alarms and Indications.
  6. Wake-up Alarm.
REGULATORY COMPLIANCE
  1. DS 8000 SMART meets all requirements relating to validation, qualification and calibration.
  2. Appropriate qualification documents (I.Q / O.Q / P.Q )can be supplied with the instrument.
PUMP SYSNTEM - PP 08
  1. Piston Pump PP-08 is ideal for sample withdrawal from 6, 7/8 channels.
  2. The Piston Pump - PP08 with inert ceramic rotor overcomes all absorption issues.
  3. Accuracy better than ±1% (@10ml).
  4. Rinse function for reducing carryover issues.
  5. Surfactant Media Compatibility.
  6. Option of sample dilution available ( not recommended before final filtration).
SAMPLE COLLECTION
  1. 18 X 8 sets of samples can be collected. For more sampling interval, 24 X 8 collection trays are available.
  2. Optional of 1.5mL & 2mL HPLC vial 24 X 8 tray is available.
  3. Auto recognition Sensor for tray with alarm facility for collection of sample.
  4. Wide mouth vial to minimise SLS spilover problem due to foaming characteristics.
  5. Easy positioning with respect to vials or test for easy changeover.
INTELLIGENT SAMPLING SYSTEM
  1. Automated sampling as per USP Specifications. Sampling tubes are lowered in the media only at the time of sampling and withdrawn immediately after sampling, thus no part of the assembly contributes motion, agitation or vibration.
  2. Sampling tubes are accurately moved to the USP sampling position i.e. a zone mid way between the surface of media and the top of paddle/basket parameters, not less than 1 cm from the vessels wall as selected in the method.
  3. 6 vessels temperature monitoring system automatically measures & records the temperature of individual vessel at specified sample points.
  4. Inter PTFE Fluoropolymer Carrier Tubing
ADDITIONAL FEATURES
  1. Built-in Validation software.
  2. Facility to RINSE the entire sampling path in between sampling time points to reduce contamination & carryover.
  3. Specially developed cleaning system to the entire sampling path after eaxh run.
  4. Facilities to perform the dissoulution test using two buffers (Buffer chaning ) to cater the application of enteric coating tablets.
  5. Recovery Test faility to study 100% Drug Dissolution.
  6. Split & on-time interval.
  7. Disposable syringe & Filter attachment for manual sample collection.
OPTIONAL ACCESSORIES
  1. Sinkers, USP 5 (Transdermal Paddle Over disk), USP 6 (Tramsdermal Rotating cylinder), Intrinsic dissolution apparatus (rotating and stationary), Enhancer cell, Felodipine Basket, Sampling cannula, Teflon coated Paddles, Dold pated Baskets.
  2. Dissolution test vessel : Peak Vessel 1000mL, 100mL, 150mL, 250mL & 500 mL with mini paddles.
  3. Dissolution Qualification tool kit for calibration according to FDA.
REPORTS

    Reports Format, colplying Run, Date and Time with GLP requirements.
    RUN REPORT
    a) Report giving Run No., Set parameters and Actual parameters during the dissolution process.
    b) Printout of each vessel temperature and paddle/basket speed at every sampling interval for validation.
    c) Validation report for Temperature, RPM, Sample Volume and Replenishing Volume.
    A Special Configuration of DS8000+ Dissolution system having 7 or 8 Bowl test faility is available. New Sample Collector SC-08 with 24x8 15 mL Test Tube tray and PP12 with 7/8 Channel Piston Pump is intelligently integrated for automatic sample collection with 7/8 Channel DTS temperature readout and sampling acceccory.
    (Please contact Labindia representative for moren information)

21 CFR PART 11 COMPLIANCE
  1. Audit Trail for all activities with search facility, report generation and printing.
  2. 200 & More User ID’s with alphanumeric entries of user name, password and role based privileges selection..
  3. Multi-level roles with password protection. Expiry & complexity.
  4. User authentication is per formed for each and every operation done by user.
  5. PDF report dile can created through print.
  6. USB Printing eliminates the need of serial port to connect with instrument. The user can take printout on any local or network printer as well.
  7. Electronic signature functionality.
  8. Data Backup & Restore facility available.
  9. LAN (Ethernet) connectivity for Data back up on Network shared folder.






OVERVIEW

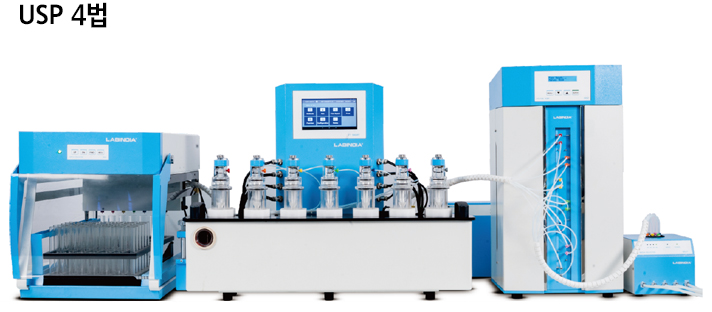

Designed to reveal formulation differences that conventional USP Apparatus 1 and 2 might miss, this system is especially effective for poorly soluble drugs, modified/extended release formulations, and low-dose products. With growing relevance in IVIVC (in vitro–in vivo correlation) studies and non-traditional dosage forms, the USP Apparatus 4 continues to evolve, adapting to the dynamic needs of modern pharmaceutical testing.


Designed to reveal formulation differences that conventional USP Apparatus 1 and 2 might miss, this system is especially effective

At the heart of Labindia’s system is its precision-engineered piston pump, setting a new benchmark in flow-through dissolution testing. Unlike traditional peristaltic pumps, the piston pump ensures ultra-precise and pulsation-free flow, enabling tighter control of flow rates across all test stations. This accuracy is crucial when working with low-dose or extended-release formulations, where even minor fluctuations can affect test outcomes. The robust design reduces wear and maintenance while delivering consistent performance and reproducible results—making it ideal for high-throughput labs and method development environments.

KEY FEATURES
    ≫ Industry-leading piston pump for accurate, pulsation-free flow control
    ≫Fully automated media change with programmable selector (up to 3 media + water)
    ≫Supports open-loop configuration for high-volume media use
    ≫ Enables optimal sink conditions without the need for solubilizing agents
    ≫ Suitable for a wide range of applications:
    ≫arenterals, emulsions, suspensions, microspheres, semi-solids
    ≫ APIs, powders, granules, tablets, capsules, pellets
    ≫Drug-eluting beads, stents, implants, ocular devices, suppositories, softgels
    ≫Real-time sampling and automated collection
    ≫Simplified, documented workflows for media switching
    ≫Engineered for IVIVC studies and pH-dependent drug release profiling
    ≫Tool-free maintenance and user-friendly interface
    ≫Proven performance in both QC and R&D settings

    The system's design supports nearly every dosage form—from standard tablets and capsules to complex drug-eluting implants and semi-solids. Labindia works closely with pharmaceutical innovators to develop custom flow-through cells, optimizing dissolution methods for emerging drug delivery platforms. Whether you're evaluating microspheres, parenterals, or coated ocular devices, the flow-through system adapts to diverse solubility profiles and dosage geometries while ensuring compliance with global pharmacopeial standards.








OVERVIEW
The Labindia Disintegration Tester DT 2000D features a 7” colour high-resolution display and an intuitive touchscreen interface, making it user-friendly and efficient. Designed to meet USP, IP, BP, and other pharmacopoeia specifications, this tester is equipped with a dual timer and dual drive, allowing individual control for each basket. It is ideal for quality control in the production of plain, coated tablets, and gelatine capsules.
STANDARD FEATURES
  1. 7" Colour High resoulution display with touth screen interface & user interactive software.
  2. Designed to meet specification of USP, IP, BP and other Pharmacopoeias.
  3. DT2000D features a dual timer (baskets will have individual timer) and a dual drive (each Basket is driven by individual drive)
  4. Specifically designed for use in the production and quality control of normal, plain, coated tablets &gelatine capsules.
  5. Provison to identify the position od disintegrated tablet with laser marked numbers on basket assembly.
  6. Two different types of samples can be analysed simultaneously.
  7. Capability of dual buffer disintegration test.
  8. Practically Unlimited test repots with date and time stamp.
  9. External temperature sensors available for individual beaker.
  10. Disintegration time for individual tablets can be recorded.
  11. Programmable Temperature & Time settings.
  12. Park out facility for basket after run completion.
  13. Moulded, cear acrylic water bath with illumination for better visibility.
  14. Audible and visible indication of low water level for safety.









OVERVIEW

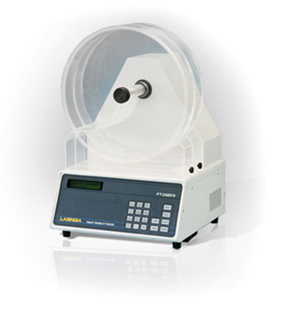

The Labindia Friability Tester FT2020 is designed to assess the mechanical strength of tablets as per pharmacopoeia standards. This microprocessor-controlled instrument allows precise programming of specific time intervals or a set number of rotations, ensuring accurate testing
STANDARD FEATURES
  1. 7" Colour High resoulution display with touth screen interface & user interactive software.
  2. Designed to meet specification of USP, IP, BP and other Pharmacopoeias.
  3. Practically Unlimited test repots with date and time stamp.
  4. Offers a count and time mode.
  5. Automatic discharge of the sample into individual sample tray after completion of each run.
  6. 10˚ tilting of drums as per USP recommendation for odd shaped tablets.
  7. Esay front-loading system.
  8. Supports friability drum and abrasion drum.
  9. Calculation of friability - percentage weigh-loss.
  10. Balance interface for sample auto weight transfer.
  11. Auto - satart facility to countinue the run in the case of power failure.
  12. Multilevel user management with editable privileges.
  13. Data downloading facility PC based EDC 21 software.









OVERVIEW
Introducing Labindia's Tablet Hardness Tester TH1200, designed for precision and efficiency in tablet testing. This compact device measures up to five critical parameters with accuracy and complies with major pharmacopeia. With an integrated load cell for automatic weighing and an intuitive touch display that stores up to 100 methods, the TH1200 enhances productivity and reliability in quality control.
STANDARD FEATURES
  1. Advance Micro-controller based user-friendly state-of the-art product design with 7" cappacitive touch screen colour display. User interactive doftware in dialogue mode for ease of operation with protection against invalid entries.
  2. 12 Positon Carousal for Automatic measurement of tablet parameter - Thinkness,Length /Diameter, Weight, Width & Hardness. The built in Sweeping blades cleans the tablet path for removal of broken pieces, debris & dust.
  3. Non-Volatile memory storage of 100 methods with parameters with Alphanumeric entries of Sample Name and Identification Number for authentication.
  4. Automatic run can be performed continuously up to 1-100tablets. Run can be restarted on power failure.
  5. Linear Displacement 0.4, 0.8, 1.2, 1.6, 2.0, 2.4, 2.8, 3.2 mm/sec with fast advance and return movement of breaking arm saves runtime.
  6. Daily Auto Incremented Run Number and Factory entered Customer name with Instrument Serial Number on report system foolproof and GLP compliant.
  7. Two Tier - a) ADMIN and b ) USER password protection for method editing and Validation. 50 User can be set with Name and password.
  8. Built-in Real Time Clock (RTC) for date and time display and on printout.
  9. Result resolution - 0.1/1N, 0.01mm, 0.1cm, 0.001inch as per unit selected.
  10. Process Stage and Compression Press no. entry and percentage Limit for detected values of Hardness, Length & Thickness with Star mark for out of limit values.
  11. Calibration & verification protocol for Hardness: 3point calibration & verification with srandard weights.
  12. Calibration & verification protocol for Length: single potint calibration & 3 point cerification with standard length gauged.
  13. Calibration & verification protocol for Thickness: 3point calibration & verification with srandard gauges.
  14. Quick RUN for Thickness, Length & Hardness or all parameter measurement in sequence up to 25 sample tablets with GLP information.
  15. Error indication on display helps user to trace the problem.
  16. Printer Compatibility for Deskjet , Inkjet & Dot-matrix printer.
  17. PC Based Data downloading facility using EDC 21 software
  18. Customizable Report File.
  19. Preview Result data befor printing.
  20. Auto Resume facility to continue the run in case power failure.
  21. Data backup to SD card & restore facility available.
  22. User can easily adjust brightness of screen.











OVERVIEW
The Labindia Tablet Hardness Tester TH1000 is an advanced, compact hardness tester engineered to measure up to 5 tablet parameters with precision. Compliant with USP, IP, BP, and other major pharmacopoeias, it features an integrated load cell for automatic sample weighing, a 7" capacitive touchscreen, and storage for 100 test methods delivering consistent, reliable results for pharmaceutical quality control laboratories.
STANDARD FEATURES
Designed for pharmaceutical quality control and production laboratories, the TH1000 accurately measures tablet hardness, thickness, diameter, length, and width in a single automated sequence. Its GLP-compliant reporting and balance interface make it ideal for regulated manufacturing, R&D, and quality assurance environments.
  1. Measures 5 parameters hardness, thickness, diameter, length, and width automatically.
  2. 7" capacitive touchscreen with 100 stored test methods and non-volatile memory.
  3. Hardness range 2N–600 N with ±1N accuracy via strain gauge load cell.
  4. Multilevel passing limits with T1, T2, T3 marking for out-of-limit values.
  5. Balance interface for automatic sample weight transfer Sartorius/Mettler compatible.
  6. PC-based data download via EDC 21 software with SD card backup and restore.









OVERVIEW

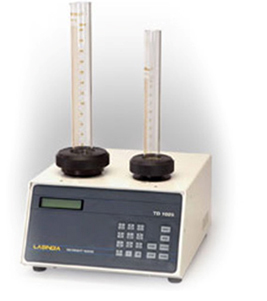

The Labindia Tap Density Tester accurately measures the tapped density of powders and granules. Featuring a user-friendly 7” touchscreen, it complies with USP and ASTM standards. Key functionalities include simultaneous tapping and rotation for even packing, multiple cylinder options, and detailed result calculations, ensuring reliable and repeatable testing.
STANDARD FEATURES
  1. Designed to meet current USP and ASTM specifications for tap density testing.
  2. Two Tapping Positions for 14mm and 3mm respectively with cylinder holders to hold 100ml and 250 ml cylinders.
  3. The unique simultaneous tapping and rotating motion assures that the material is evenly packed.
  4. Calculates results - Tapped Density, Compressibility Index, Hausner Ratio and Bulk Density.
  5. Balance Interface for sample weight transfer.

법인명 : (주)아이엠텍 │ 대표이사 : 황지만 │ 사업자등록번호 : 848 – 81 -00978
본사 - (14558)경기도 부천시 원미구 조마루로 385번길 92 부천 테크노밸리 U1센터 1507~1508호│TEL : 032-327-2558 │ FAX : 032-327-2556 │CP : 010-3298-3284
호남사무소 - CP : 010-9146-9307 │ FAX : 041-957-9557
Copyright ⓒ IMTech Co Ltd.(주)아이엠텍. All Rights Reserved.
